Anchor stirrer, PTFE

The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.

Operating temperature: -200°C to +250°C

Additional sizes and accessories are available on request.

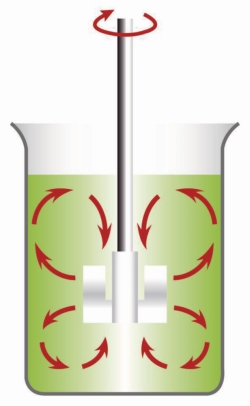

Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.

Recommended for low speed operations.

Ø agitator mm	40
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	350

PK	1
Cat. No.	09840269

Ø agitator mm	60
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	350

PK	1
Cat. No.	06884821

Ø agitator mm	60
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	450

PK	1
Cat. No.	10005591

Ø agitator mm	60
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	800

PK	1
Cat. No.	08436150
-

Ø agitator mm	80
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	450

PK	1
Cat. No.	10005590

Ø agitator mm	80
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	600

PK	1
Cat. No.	09281627
-

Ø agitator mm	100
Ø agitator shaft mm	8
To fit chuck diam. mm	6.5
Length mm	600

PK	1
Cat. No.	06884820

Ø agitator mm	80
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	350

PK	1
Cat. No.	06884819

Ø agitator mm	80
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	450

PK	1
Cat. No.	09181303
-

Ø agitator mm	100
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	450

PK	1
Cat. No.	09794991
-

Ø agitator mm	100
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	600

PK	1
Cat. No.	06884818

Ø agitator mm	100
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	800

PK	1
Cat. No.	09871845
-

Ø agitator mm	100
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	1000

PK	1
Cat. No.	09833921
-

Ø agitator mm	130
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	450

PK	1
Cat. No.	08099819
-

Ø agitator mm	130
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	600

PK	1
Cat. No.	08181591
-

Ø agitator mm	130
Ø agitator shaft mm	10
To fit chuck diam. mm	8
Length mm	800

PK	1
Cat. No.	08421986
-

Ø agitator mm	150
Ø agitator shaft mm	16
To fit chuck diam. mm	14
Length mm	800

PK	1
Cat. No.	09817743
-

Ø agitator mm	150
Ø agitator shaft mm	16
To fit chuck diam. mm	14
Length mm	1000

PK	1
Cat. No.	09871844
-

Ø agitator mm	150
Ø agitator shaft mm	16
To fit chuck diam. mm	14
Length mm	1200

PK	1
Cat. No.	06884817

Ø agitatormm 40

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 350

Cat. No. 09840269

Ø agitatormm 60

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 350

Cat. No. 06884821

Ø agitatormm 60

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 450

Cat. No. 10005591

Ø agitatormm 60

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 800

Cat. No. 08436150

Ø agitatormm 80

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 450

Cat. No. 10005590

Ø agitatormm 80

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 600

Cat. No. 09281627

Ø agitatormm 100

Ø agitator shaftmm 8

To fit chuck diam.mm 6.5

Lengthmm 600

Cat. No. 06884820

Ø agitatormm 80

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 350

Cat. No. 06884819

Ø agitatormm 80

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 450

Cat. No. 09181303

Ø agitatormm 100

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 450

Cat. No. 09794991

Ø agitatormm 100

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 600

Cat. No. 06884818

Ø agitatormm 100

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 800

Cat. No. 09871845

Ø agitatormm 100

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 1000

Cat. No. 09833921

Ø agitatormm 130

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 450

Cat. No. 08099819

Ø agitatormm 130

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 600

Cat. No. 08181591

Ø agitatormm 130

Ø agitator shaftmm 10

To fit chuck diam.mm 8

Lengthmm 800

Cat. No. 08421986

Ø agitatormm 150

Ø agitator shaftmm 16

To fit chuck diam.mm 14

Lengthmm 800

Cat. No. 09817743

Ø agitatormm 150

Ø agitator shaftmm 16

To fit chuck diam.mm 14

Lengthmm 1000

Cat. No. 09871844

Ø agitatormm 150

Ø agitator shaftmm 16

To fit chuck diam.mm 14

Lengthmm 1200

Cat. No. 06884817

Additional wings available on request

Alternate products:

Anchor stirring rotors, stainless steel
