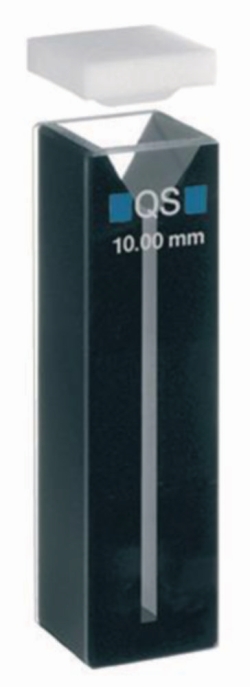

Cells for Absorption Measurement, UV-range

Cells for Absorption Measurement, UV-range

To maintain constant good measurement results, a regular review of the accuracy of the spectrophotometer is required. With the use of certified reference materials from Hellma Analytics, you make sure that your equipment qualifications meet the requirements of the pharmacopoeias and fulfill your internal quality requirements, at the same time you reach the international comparability of your measurement results. The certified reference materials (calibration standards) of the DIN EN ISO 17025 accredited Hellma Analytics calibration laboratory are traceable to the primary standards of NIST (National Institute of Standards and Technology) and meet the requirements of the major pharmacopoeias (e.g. EP, DAB, USP).
Your benefits:

High quality of the measurement results
International comparability of measurement results
Meeting the requirements of the major pharmacopoeias (EP, DAB, USP)
Results traceable to NIST primary standards
30 years warranty on the reference materials

Scope of delivery:

Certified reference materials (Calibration Standards) in quality storage box
DAkkS Calibration Certificate (DIN 17025)
Handling guidelines

Wavelength Range: 200nm - 2500 nm. Optical material: Quartz glass High Performance

Type	macro
Description	Screw cap **
Capacity µl	3500
External dimensions (W x D x H) mm	12.5 x 12.5 x 56
internal width (mm) / aperture (mm x mm/Ø)	9.5
Centre height mm
Path length mm	10

PK	1
Cat. No.	09280746

Type	macro
Description	Pipe-Ø 8mm, nozzle length 80 mm
Capacity µl	3500
External dimensions (W x D x H) mm	12.5 x 12.5 x 40
internal width (mm) / aperture (mm x mm/Ø)	9.5
Centre height mm
Path length mm	10

PK	1
Cat. No.	09859381

Type	semi-micro
Description	PTFE lid
Capacity µl	1400
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937505

Type	semi-micro
Description	PTFE lid
Capacity µl	7000
External dimensions (W x D x H) mm	12.5 x 52.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	50

PK	1
Cat. No.	06937500

Type	semi-micro
Description	PTFE lid *
Capacity µl	1400
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937475

Type	semi-micro
Description	PTFE lid
Capacity µl	1000
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm	15.2
Path length mm	10

PK	1
Cat. No.	09831948

Type	semi-micro
Description	PTFE lid *
Capacity µl	1000
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm	15.2
Path length mm	10

PK	1
Cat. No.	09281741

Type	semi-micro
Description	PTFE stopper
Capacity µl	1400
External dimensions (W x D x H) mm	12.5 x 12.5 x 46
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937235

Type	semi-micro
Description	PTFE stopper *
Capacity µl	1400
External dimensions (W x D x H) mm	12.5 x 12.5 x 46
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937593

Type	semi-micro
Description	Screw cap **
Capacity µl	1400
External dimensions (W x D x H) mm	12.5 x 12.5 x 56
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	10005326

Type	semi-micro
Description	PTFE stopper ***
Capacity µl	1500
External dimensions (W x D x H) mm	12.5 x 12.5 x 49.5
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm
Path length mm	10

PK	1
Cat. No.	10001730

Type	micro
Description	PTFE lid
Capacity µl	700
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937214

Type	micro
Description	PTFE lid *
Capacity µl	700
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937209

Type	micro
Description	PTFE lid
Capacity µl	500
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm	15.2
Path length mm	10

PK	1
Cat. No.	09997243

Type	micro
Description	PTFE lid *
Capacity µl	500
External dimensions (W x D x H) mm	12.5 x 12.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm	15.2
Path length mm	10

PK	1
Cat. No.	10005324

Type	micro
Description	PTFE lid
Capacity µl	400
External dimensions (W x D x H) mm	12.5 x 12.5 x 40
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937207

Type	micro
Description	PTFE lid *
Capacity µl	400
External dimensions (W x D x H) mm	12.5 x 12.5 x 40
internal width (mm) / aperture (mm x mm/Ø)	2
Centre height mm
Path length mm	10

PK	1
Cat. No.	06937580

Type	demountable
Description	with loose sheets of glazing
Capacity µl
External dimensions (W x D x H) mm	12.5 x 2.5 x 45
internal width (mm) / aperture (mm x mm/Ø)	9
Centre height mm
Path length mm	0.01 ±0.003

PK	1
Cat. No.	09880694

Type	demountable
Description	with loose sheets of glazing
Capacity µl
External dimensions (W x D x H) mm	12.5 x 2.6 x 45
internal width (mm) / aperture (mm x mm/Ø)	9
Centre height mm
Path length mm	0.1 ±0.005

PK	1
Cat. No.	09877463

Type	demountable
Description	with loose sheets of glazing
Capacity µl
External dimensions (W x D x H) mm	12.5 x 2.7 x 45
internal width (mm) / aperture (mm x mm/Ø)	9
Centre height mm
Path length mm	0.2 ±0.005

PK	1
Cat. No.	09880634

Type	demountable
Description	with loose sheets of glazing
Capacity µl
External dimensions (W x D x H) mm	12.5 x 3 x 45
internal width (mm) / aperture (mm x mm/Ø)	9
Centre height mm
Path length mm	0.5 ±0.010

PK	1
Cat. No.	09878896

Type
Description	PTFE lid ***
Capacity µl	1500
External dimensions (W x D x H) mm	12,5 x 12,5 x 45
internal width (mm) / aperture (mm x mm/Ø)	4
Centre height mm	20
Path length mm	10

PK	1
Cat. No.	09993672
-

Type macro

Description Screw cap **

Capacityµl 3500

External dimensions (W x D x H)mm 12.5 x 12.5 x 56

internal width (mm) / aperture (mm x mm/Ø) 9.5

Centre heightmm

Path lengthmm 10

Cat. No. 09280746

Type macro

Description Pipe-Ø 8mm, nozzle length 80 mm

Capacityµl 3500

External dimensions (W x D x H)mm 12.5 x 12.5 x 40

internal width (mm) / aperture (mm x mm/Ø) 9.5

Centre heightmm

Path lengthmm 10

Cat. No. 09859381

Type semi-micro

Description PTFE lid

Capacityµl 1400

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 06937505

Type semi-micro

Description PTFE lid

Capacityµl 7000

External dimensions (W x D x H)mm 12.5 x 52.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 50

Cat. No. 06937500

Type semi-micro

Description PTFE lid *

Capacityµl 1400

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 06937475

Type semi-micro

Description PTFE lid

Capacityµl 1000

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm 15.2

Path lengthmm 10

Cat. No. 09831948

Type semi-micro

Description PTFE lid *

Capacityµl 1000

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm 15.2

Path lengthmm 10

Cat. No. 09281741

Type semi-micro

Description PTFE stopper

Capacityµl 1400

External dimensions (W x D x H)mm 12.5 x 12.5 x 46

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 06937235

Type semi-micro

Description PTFE stopper *

Capacityµl 1400

External dimensions (W x D x H)mm 12.5 x 12.5 x 46

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 06937593

Type semi-micro

Description Screw cap **

Capacityµl 1400

External dimensions (W x D x H)mm 12.5 x 12.5 x 56

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 10005326

Type semi-micro

Description PTFE stopper ***

Capacityµl 1500

External dimensions (W x D x H)mm 12.5 x 12.5 x 49.5

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm

Path lengthmm 10

Cat. No. 10001730

Type micro

Description PTFE lid

Capacityµl 700

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm

Path lengthmm 10

Cat. No. 06937214

Type micro

Description PTFE lid *

Capacityµl 700

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm

Path lengthmm 10

Cat. No. 06937209

Type micro

Description PTFE lid

Capacityµl 500

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm 15.2

Path lengthmm 10

Cat. No. 09997243

Type micro

Description PTFE lid *

Capacityµl 500

External dimensions (W x D x H)mm 12.5 x 12.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm 15.2

Path lengthmm 10

Cat. No. 10005324

Type micro

Description PTFE lid

Capacityµl 400

External dimensions (W x D x H)mm 12.5 x 12.5 x 40

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm

Path lengthmm 10

Cat. No. 06937207

Type micro

Description PTFE lid *

Capacityµl 400

External dimensions (W x D x H)mm 12.5 x 12.5 x 40

internal width (mm) / aperture (mm x mm/Ø) 2

Centre heightmm

Path lengthmm 10

Cat. No. 06937580

Type demountable

Description with loose sheets of glazing

Capacityµl

External dimensions (W x D x H)mm 12.5 x 2.5 x 45

internal width (mm) / aperture (mm x mm/Ø) 9

Centre heightmm

Path lengthmm 0.01 ±0.003

Cat. No. 09880694

Type demountable

Description with loose sheets of glazing

Capacityµl

External dimensions (W x D x H)mm 12.5 x 2.6 x 45

internal width (mm) / aperture (mm x mm/Ø) 9

Centre heightmm

Path lengthmm 0.1 ±0.005

Cat. No. 09877463

Type demountable

Description with loose sheets of glazing

Capacityµl

External dimensions (W x D x H)mm 12.5 x 2.7 x 45

internal width (mm) / aperture (mm x mm/Ø) 9

Centre heightmm

Path lengthmm 0.2 ±0.005

Cat. No. 09880634

Type demountable

Description with loose sheets of glazing

Capacityµl

External dimensions (W x D x H)mm 12.5 x 3 x 45

internal width (mm) / aperture (mm x mm/Ø) 9

Centre heightmm

Path lengthmm 0.5 ±0.010

Cat. No. 09878896

Type

Description PTFE lid ***

Capacityµl 1500

External dimensions (W x D x H)mm 12,5 x 12,5 x 45

internal width (mm) / aperture (mm x mm/Ø) 4

Centre heightmm 20

Path lengthmm 10

Cat. No. 09993672

^M= Measuring volume
* black side walls and base
** with silicone rubber seal and with ISO thread GL 14
*** for magnetic stirring bars

Accessories:

Holder for Absorption Cells
